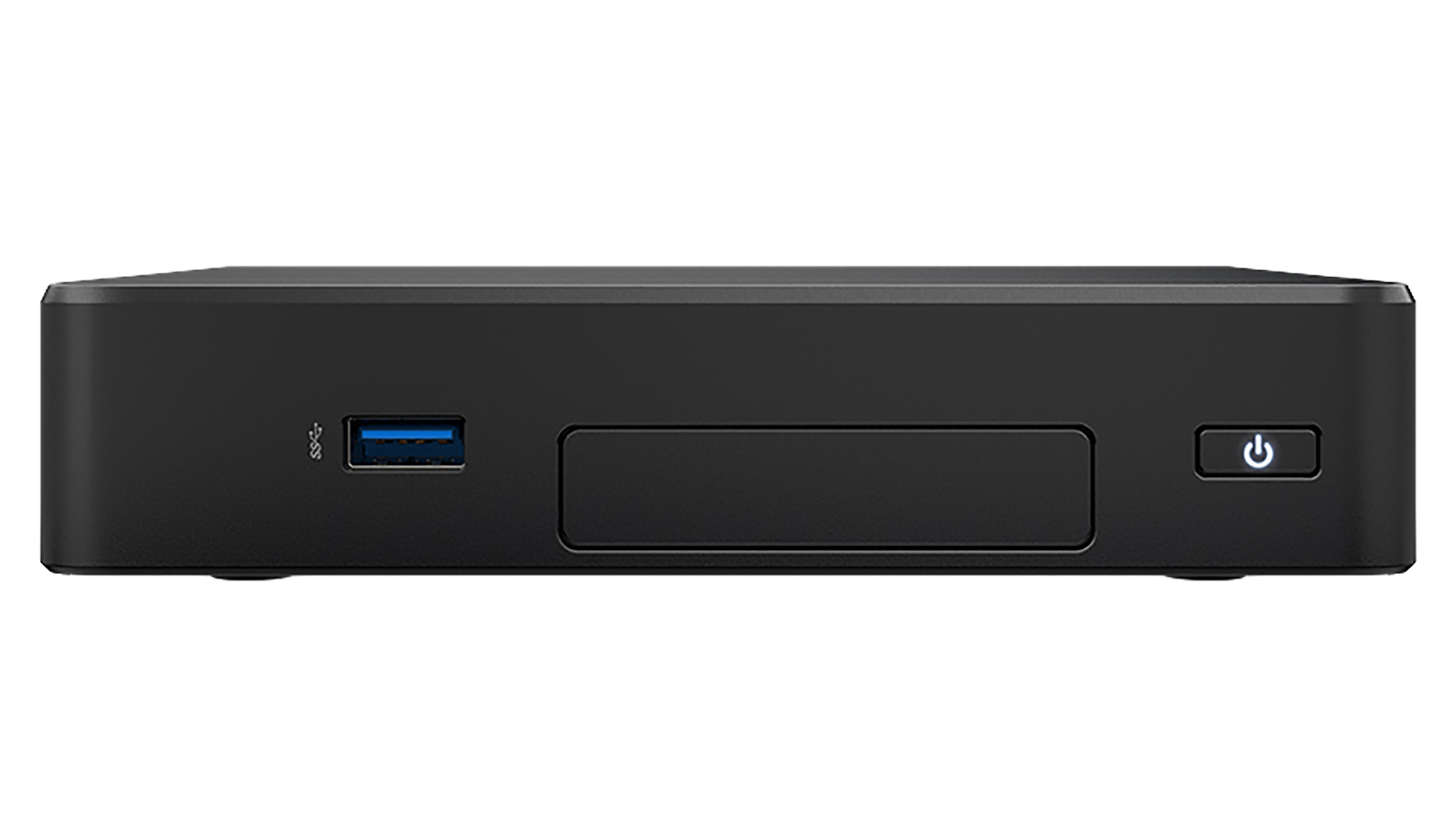

Intel NUC 8 Rugged LPDDR3-SDRAM N3350 mini PC Intel® Celeron® N 4 GB 64 GB eMMC Zwart
 Printen |  Vergelijken |
| |
| Processor | |
| Processorfamilie | Intel® Celeron® N |
| Processorfabrikant | Intel |
| Processormodel | N3350 |
| Frequentie van processor | 1,1 GHz |
| Aantal processorkernen | 2 |
| Maximale turbofrequentie van processor | 2,4 GHz |
| Processor socket | BGA 1296 |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor aantal threads | 2 |
| Systeembus | 5 GT/s |
| Processor lithografie | 14 nm |
| Processor operating modes | 64-bit |
| Processorserie | Intel Celeron N3000 series |
| Codenaam processor | Apollo Lake |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 105 °C |
| PCI Express slots versie | 2.0 |
| Maximaal aantal PCI Express-lijnen | 6 |
| PCI Express configuraties | 1x2+2x1,4x1 |
| Aantal geïnstalleerde processoren | 1 |
| Maximaal intern geheugen ondersteund door processor | 8 GB |
| Geheugentypen ondersteund door processor | LPDDR4-SDRAM,DDR3L-SDRAM,LPDDR3-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 1866,2400 MHz |
| Geheugen | |
| Intern geheugen | 4 GB |
| Maximum intern geheugen | 4 GB |
| Intern geheugentype | LPDDR3-SDRAM |
| ECC |  |
| Geheugen kanaal | Dual-channel |
| Opslagmedia | |
| Totale opslagcapaciteit | 64 GB |
| Soort optische drive | |
| Opslagmedia | eMMC |
| Geïntegreerde geheugenkaartlezer | |
| SSD-vormfactor | M.2 |
| Ingebouwde opslagcapaciteit | 65536 MB |
| Grafisch | |
| Aparte grafische adapter | |
| Ingebouwde grafische adapter | |
| Discreet grafische adapter model | Niet beschikbaar |
| On-board graphics adapter model | Intel® HD Graphics 500 |
| Basisfrequentie ingebouwde grafische adapter | 200 MHz |
| On-board grafische adapter burst frequentie | 650 MHz |
| Graphics on-board -adapter dynamische frequentie (max) | 650 MHz |
| Maximaal geheugen ingebouwde grafische adapter | 8 GB |
| Aantal displays ondersteund (door on-board grafische adapter) | 3 |
| On-board grafische adapter ID | 0x5A85 |
| Aantal verwerkingseenheden | 12 |
| Netwerk | |
| Ethernet LAN |  |
| Wifi | |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| LAN controller | Intel® I211-AT |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standaarden | Wi-Fi 5 (802.11ac) |
| Draadloos LAN data-overdrachtsnelheid (max) | 433 Mbit/s |
| WLAN-controller-model | Intel Dual Band Wireless-AC 3168 |
| Soort antenne | 1x1 |
| Bluetooth | |
| Bluetooth-versie | 4.2 |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal HDMI-poorten | 1 |
| DVI-poort | |
| HDMI versie | 2.0 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Microfoon, line-in ingang | |
| Aansluiting voor netstroomadapter | |
| M.2 kaartslot (draadloos) | 2230 (E-key) |
| M.2-kaartsleuf (opslag) | 2280 (M-key) |
| Seriële port via interne header | |
| Aan-/uitknop | |
| Design | |
| Type behuizing | mini PC |
| Kleur van het product | Zwart |
| Intel® vPro™ Platform Eligibility | |
| Prestatie | |
| Type product | Mini PC |
| Moederbord form factor | NUC |
| Trusted Platform Module (TPM) | |
| Software | |
| Compatibele besturingssystemen | Windows 10, 64-bit* |
| Processor speciale functies | |
| Intel® Small Business Advantage (Intel® SBA) | |
| Intel® Wireless Display (Intel® WiDi) | |
| Intel® 64 | |
| Enhanced Intel SpeedStep Technology | |
| Ingebouwde opties beschikbaar | |
| Intel® InTru™ 3D Technology | |
| Intel® Insider™ | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel® Clear Video-technologie | |
| Intel® VT-x with Extended Page Tables (EPT) | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Intel® Stable Image Platform Program (SIPP) | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Intel® Secure Key | |
| Intel® OS Guard | |
| Intel® Trusted Execution Technology | |
| Execute Disable Bit | |
| Intel® Enhanced Halt State | |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID) | |
| Verpakkingsgrootte processor | 24 x 31 mm |
| CPU configuratie (max) | 1 |
| UART | |
| Intel® Virtualization Technology for Directed I/O (VT-d) | |
| Intel® Smart Idle Technology | |
| Intel® Veilig opstarten | |
| Versie Intel® Smart Connect Technology | 0,00 |
| Versie Intel® Identity Protection Technology | 1,00 |
| Versie Intel® Secure Boot Technology | 1,00 |
| Versie Intel® Stable Image Platform Program (SIPP) | 0,00 |
| Versie Intel® Secure Key Technology | 1,00 |
| Intel® Virtualization Technology (VT-x) | |
| Intel® Small Business Advantage (SBA)-versie | 0,00 |
| Versie Intel® Smart Response Technology | 0,00 |
| Intel® Rapid Storage Technology | |
| ARK ID processor | 95598 |
| Intel® Platform Trust Technology (Intel® PTT) | |
| Intel® Smart Response Technology | |
| Intel® Turbo Boost Technology | |
| Intel® Smart Connect Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Quick Sync Video Technology | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® Anti-Theft Technology (Intel® AT) | |
| Conflictvrije processor | |
| Energie | |
| DC voltage input | 12 - 24 V |
| Gewicht en omvang | |
| Breedte | 154 mm |
| Diepte | 108 mm |
| Hoogte | 32 mm |
| Inhoud van de verpakking | |
| Inclusief monitor | |
| Inclusief netsnoer | |
| Overige specificaties | |
| Vormfactor | 3.5” SBC (146mm x 101.6mm) |
| Ethernet interface type | Gigabit Ethernet |
| Aantal displays ondersteund | 2 |
| ARK ID | 214634 |
| Aantal USB-aansluitingen | 4 |
| Extra headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Code geharmoniseerd systeem (HS) | 8471500150 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Grafische uitvoer | HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4 |
| Status | Launched |
| Processor inbegrepen | Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz) |
