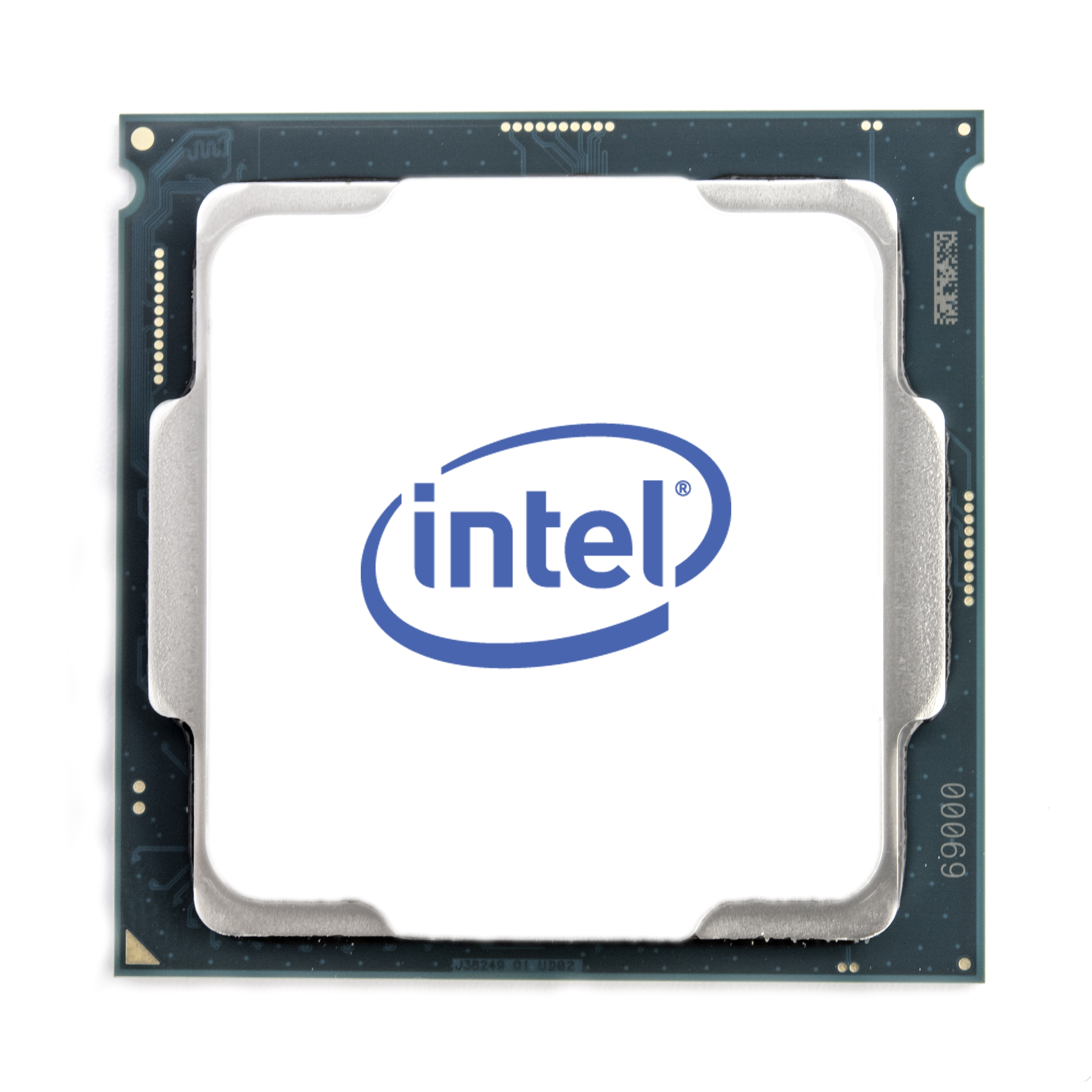

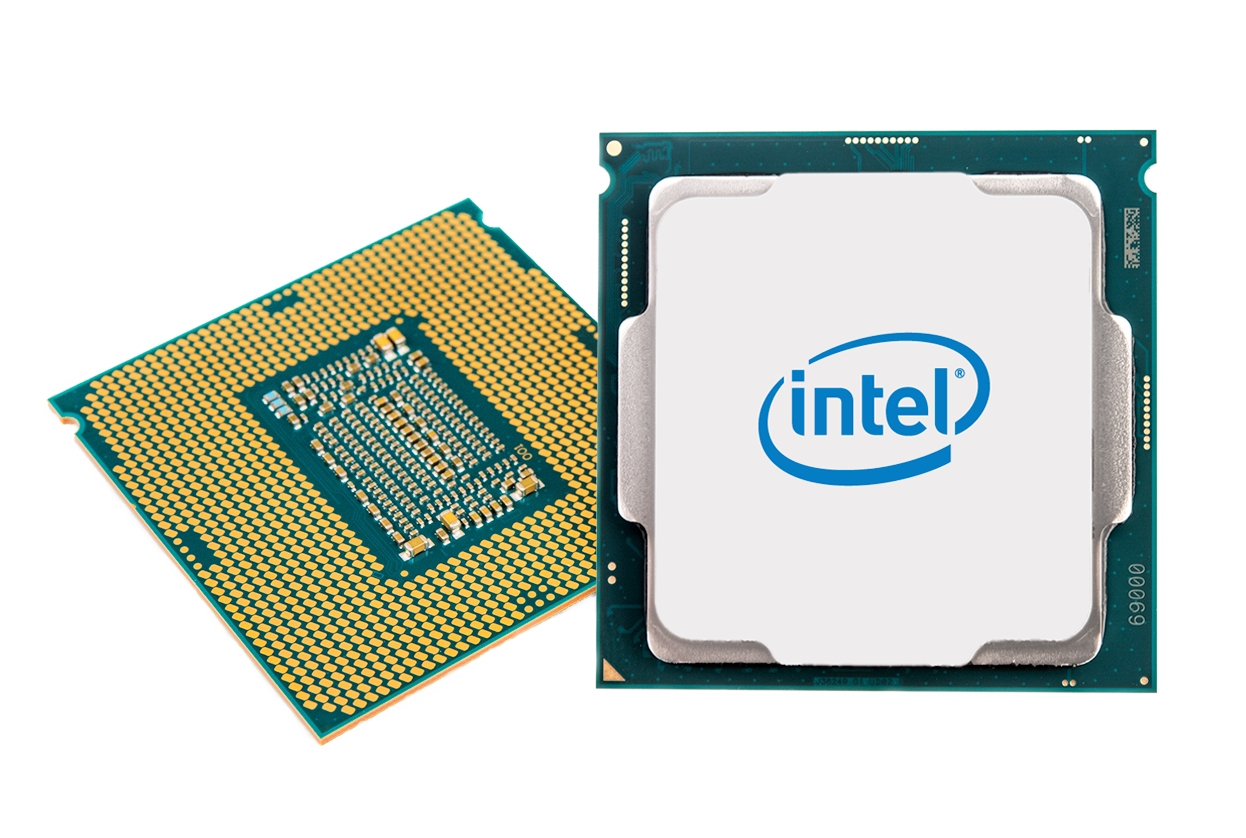

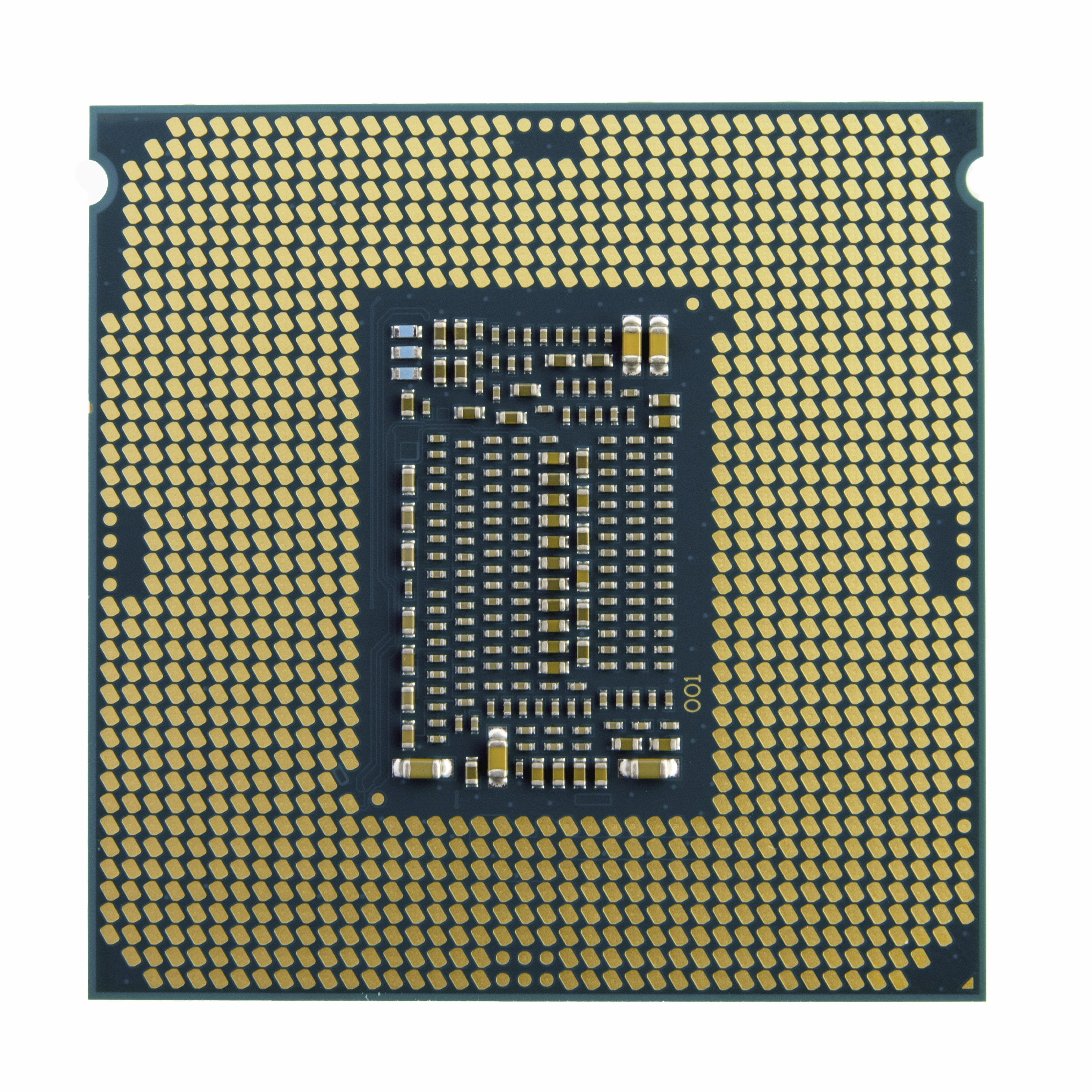

Intel Celeron G5905 processor 3,5 GHz 4 MB Smart Cache Box
 Printen |  Vergelijken |
| |
| Processor | |
| Processorfamilie | Intel® Celeron® G |
| Aantal processorkernen | 2 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor lithografie | 14 nm |
| Box |  |
| Inclusief koeler | |
| Processorfabrikant | Intel |
| Processormodel | G5905 |
| Basisfrequentie processor | 3,5 GHz |
| Processor operating modes | 64-bit |
| Component voor | PC |
| Processor aantal threads | 2 |
| Systeembus | 8 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 58 W |
| Geheugenbandbreedte ondersteund door de processor ( max) | 41,6 GB/s |
| Codenaam processor | Comet Lake |
| ARK ID processor | 201899 |
| Geheugen | |
| Geheugen kanaal | Dual-channel |
| Maximaal intern geheugen ondersteund door processor | 128 GB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2666 MHz |
| Grafisch | |
| Ingebouwde grafische adapter | |
| Aparte grafische adapter |  |
| On-board graphics adapter model | Intel® UHD Graphics 610 |
| Discreet grafische adapter model | Niet beschikbaar |
| Maximaal geheugen ingebouwde grafische adapter | 64 GB |
| Basisfrequentie ingebouwde grafische adapter | 350 MHz |
| Graphics on-board -adapter dynamische frequentie (max) | 1050 MHz |
| Aantal displays ondersteund (door on-board grafische adapter) | 3 |
| 4K-ondersteuning | |
| On-board grafische adapter DirectX-versie | 12.0 |
| On-board grafische adapter OpenGL versie | 4.5 |
| Graphics aan boord maximale resolutie adapter (DisplayPort ) | 4096 x 2304 Pixels |
| Maximale resolutie (eDP - Integrated Flat Panel) | 4096 x 2304 Pixels |
| Maximale resolutie ingebouwde grafische adapter (HDMI) | 4096 x 2160 Pixels |
| Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort ) | 60 Hz |
| Refresh rate op maximale resolutie (eDP - Integrated Flat Panel) | 60 Hz |
| Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI) | 30 Hz |
| On-board grafische adapter ID | 0x9BA8 |
| Kenmerken | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Marktsegment | Desktop |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express slots versie | 3.0 |
| PCI Express configuraties | 1x16,2x8,1x8+2x4 |
| Ondersteunde instructie sets | SSE4.1,SSE4.2 |
| Schaalbaarheid | 1S |
| CPU configuratie (max) | 1 |
| Ingebouwde opties beschikbaar | |
| Thermal solution specificatie | PCG 2015C |
| PCI Express CEM revisie | 3.0 |
| Code geharmoniseerd systeem (HS) | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor speciale functies | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® Turbo Boost Technology | |
| Intel® Quick Sync Video Technology | |
| Intel® InTru™ 3D Technology | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Intel® Trusted Execution Technology | |
| Intel® Thermal Velocity Boost | |
| Intel® Transactional Synchronization Extensions | |
| Intel® VT-x with Extended Page Tables (EPT) | |
| Intel® Secure Key | |
| Intel® Stable Image Platform Program (SIPP) | |
| Intel® OS Guard | |
| Intel® Clear Video-technologie | |
| Intel® Software Guard Extensions (Intel® SGX) | |
| Intel® 64 | |
| Intel® Virtualization Technology (VT-x) | |
| Intel® Virtualization Technology for Directed I/O (VT-d) | |
| Intel® Turbo Boost Max Technology 3.0 | |
| Intel® Optane™ Memory Ready | |
| Intel® Boot Guard | |
| Intel® vPro™ Platform Eligibility | |
| Eisen aan de omgeving | |
| Tjunction | 100 °C |
| Technische details | |
| Type product | Processor |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Maximaal geheugen grafische adapter | 64 GB |
| Verpakking | |
| Type verpakking | Retaildoos |
| Gewicht en omvang | |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Overige specificaties | |
| Maximum intern geheugen | 128 GB |
| Lanceringsdatum | Q3'20 |
| Maximale resolutie & verversingsfrequentie (DisplayPort) | 4096x2304@60Hz |
| Status | Launched |
| Maximaal geheugen | 128 GB |
| Bussnelheid | 8 GT/s |
| Processor-id | 0x9BA8 |
